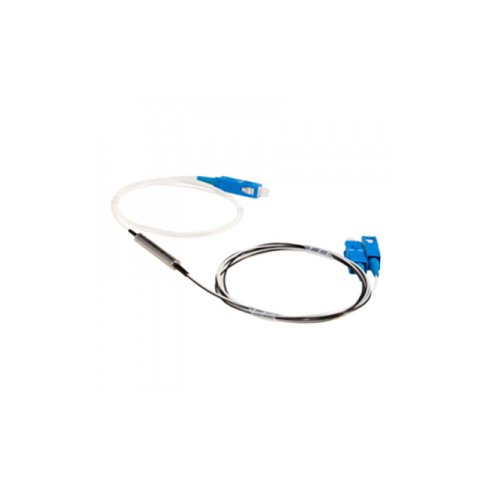

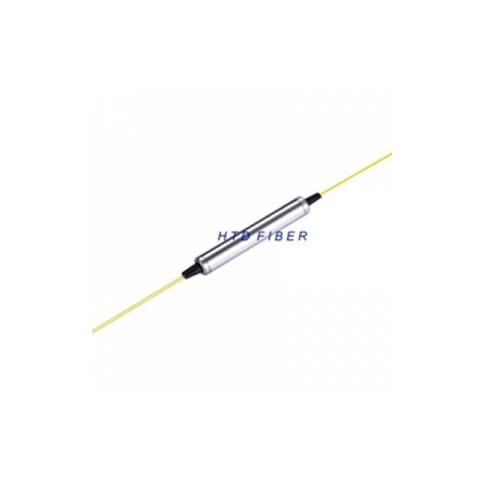

Coarse Wavelength Division Multiplexing Device（CWDM）
粗波分复用器件
1. Features 产品特征
l Low Insertion Loss低插入损耗
l Wide Channel Bandwidth宽通道带宽
l High Channel Isolation高通道隔离度
l High Stability and Reliability高稳定性和可靠性
l Epoxy-Free on Optical Path光路无胶
2. Applications应用范围
l Line Monitoring在线检测
l WDM Network System波分复用系统
l Telecommunication Network System通信网络系统
l CATV System有线电视系统
l Cellular Application移动应用
l Optical Amplifier光放大器
l Optical MAN /Access Networks光城域网/接入网
l Single Direction/Bi-Direction Transmission单向/双向传输系统
3. Compliance标准
l Telcordia GR-1209-CORE-2001
l Telcordia GR-1221-CORE-1999
l RoHS
4. Product Standard产品规格
Parameter规格 | Unit单位 | Specifications参数 | ||
Operating Wavelength工作波长 | nm | 1260~1620 or 1460~1620 | ||
Channel Center Wavelength通道中心波长 | nm | CWDM ITU-T | ||
Channel Space通道间隔 | nm | 20 | ||
Channel Passband通道带宽 | Min | nm | ±6.5 | |
Reflection-Band反射带宽 | nm | 1260~(λc-12.5) & (λc+12.5)~1620 | ||
Insertion Loss插入损耗 | Transmission透射端 | Max | dB | 0.6 |
Reflection反射端 | Max | dB | 0.4 | |
Isolation隔离度 | Transmission透射端 | Min | dB | 30 |
Reflection反射端 | Min | dB | 15 | |
Passband Ripple通道一致性 | Max | dB | 0.30 | |
Polarization Dependent Loss偏振相关损耗 | Max | dB | 0.10 | |
Temperature Dependent Loss温度相关损耗 | Max | dB/°C | 0.005 | |
Directivity方向性 | Min | dB | 50 | |
Return Loss回波损耗 | Min | dB | 45 | |
Polarization Mode Dispersion偏振模式色散 | Max | ps | 0.10 | |
Power Handling可耐功率 | Max | mW | 300 | |
Pigtail Type尾纤类型 | mm | |||
connector Type连接头类型 | -- | Client Specify | ||
Fiber Type光纤类型 | -- | SMF-28e or Client Specify | ||
Fiber length光纤长度 | m | ≥1.0 or Client Specify | ||
Operating Temperature工作温度 | °C | -20 ~ 70 | ||
Storage Temperature储存温度 | °C | -40 ~ 85 | ||
Package Dimension封装尺寸 | mm | 5.5×30 or Client Specify | ||
Note注: 1. All Parameters Are For Device Without Connectors.以上为不含连接头指标
2. Special Specifications Can Be Customized According To Customer Requirements. 可根据要求定做特殊规格产品
5. Dimensions(mm)外形尺寸
6. Ordering Information订购信息
CWDM- | □ | □□□ | □ | □□ | □ | □ | □ | □□ | （□） |
CWDM Device | Product Type产品类型 | Center Wavelength中心波长 | Operating Wavelength 工作波长 | Fiber Type 光纤类型 | Pigtail Type 尾纤类型 | Pigtail Length 尾纤长度 | Package Dimension 封装尺寸 | Connector 连接头 | Remark 备注 |
A=1X2 | 270/1=1270/1 | H=1460~1620 | SM=SMF-28E | 1=250UM | 1=0.5m | H=5.5X30 | NA=NONE | U=升级端 | |
B=2X4 | … | F=1260~1620 | G6=G657A1 | 2=900UM | 2=1.0m | F=4.2x28 | FP=FC/UPC | M1=1%MON | |
610/1=1610/1 | E=1260~1460 | M5=MM50/125 | 3=2.0MM | 3=1.5m | I=5.5X34 | FA=FC/APC | M5=5%MON | ||
S= Client Specify | M6=MM62.5/125 | 4=3.0MM | 4=2.0m | J=80X60X12mm | LP=LC/UPC | ||||
PM=PM Fiber | 0= BareFiber | S= Client Specify | L=90X20X10mm | LA=LC/APC | |||||
F9=OFS 980 | S= Client Specify | M=100X80X10mm | SP=SC/UPC | ||||||
H1=HI1060 | N=120X80X18mm | SA=SC/APC | |||||||
SS= Client Specify | O=141X115X18mm | SS= Client Specify | |||||||
P=LGX | |||||||||
Q=1U | |||||||||
S= Client Specify |
