CNTri-Panel Series
Tri-Panel Series Wallmount Enclosures feature separate compartments for patching and splicing. The compact and intuitive design requires less space and provides easy access to the connectors.
Tri-Panel Series Wallmount Enclosures feature separate compartments for patching and splicing. The compact and intuitive design requires less space and provides easy access to the connectors.
Tri-Panel Series Wallmount Enclosures feature separate compartments for patching and splicing. The compact and intuitive design requires less space and provides easy access to the connectors. Tri-Panels are ideal for use when a compact, wall mountable, patch, splice, and storage enclosure is required such as drops to commercial customers, cell sites, hospitals, or anywhere separate compartments are needed to separate/demarc patch and splice areas.
Features

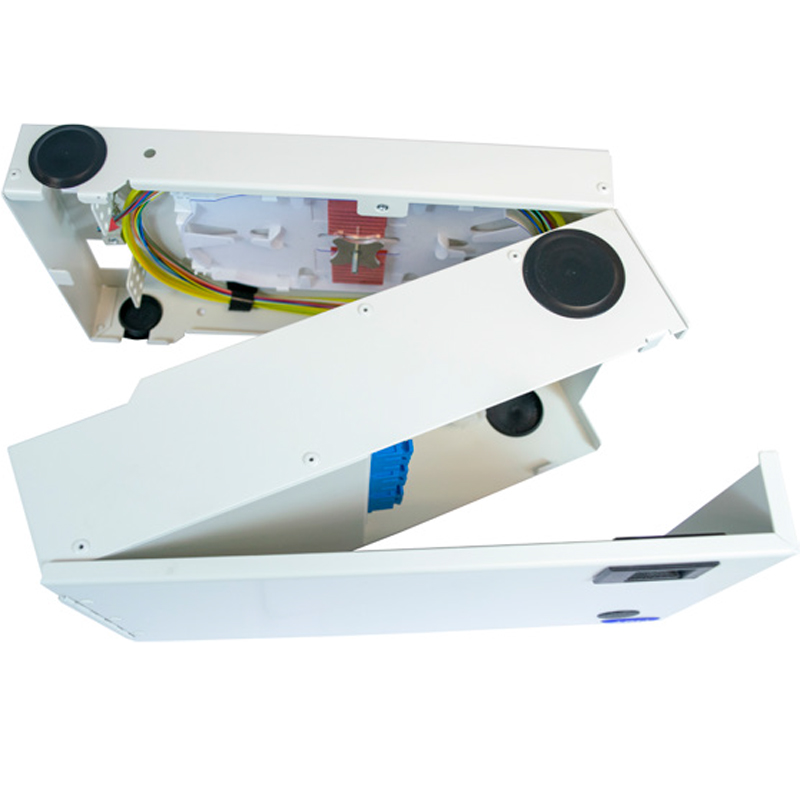

• The patch and splice compartments are separated and make efficient use of wall space
• The fiber pigtails are well organized and easily accessible
• Intuitive design supports simple customer cable entry, organization, splicing, and patching
• ARIA coupler, splitter, CWDM, and DWDM cassettes are supported

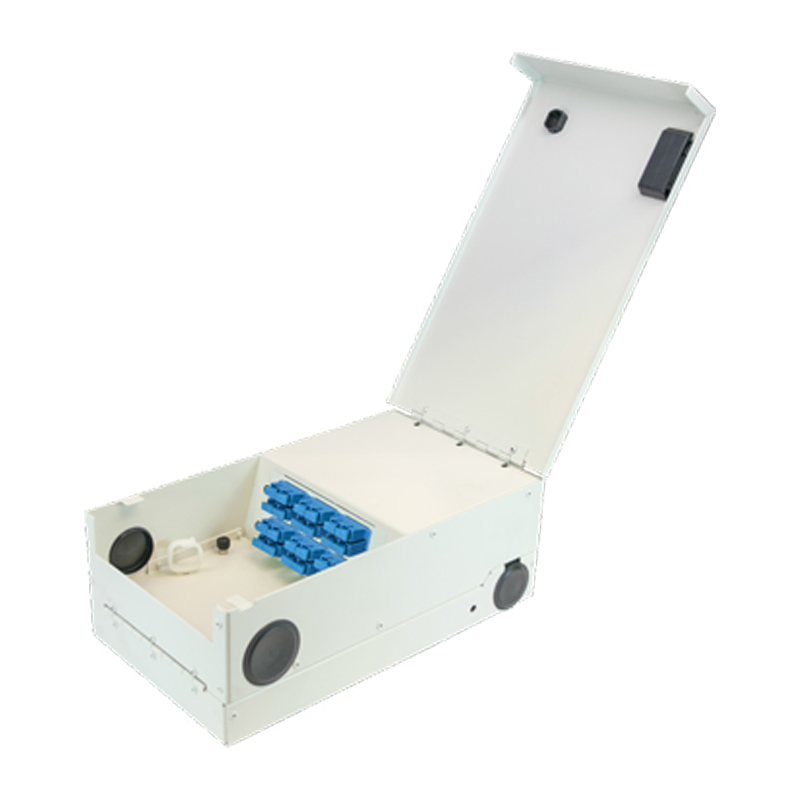

• Panel cutout and L-shaped door design enhances connector access
• Angled adapter plate mounting surface makes it easy to access the connectors
• Sizable splicing compartment provides ample room for pigtail storage and protection

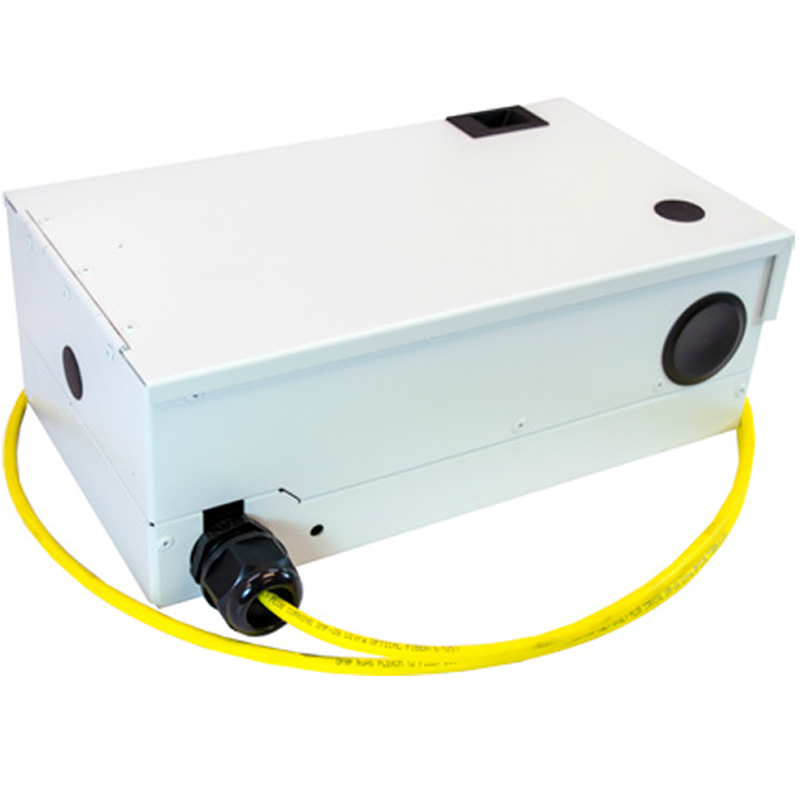

Tri-Panels are available as a “pre-term panel” with a connectorized stub

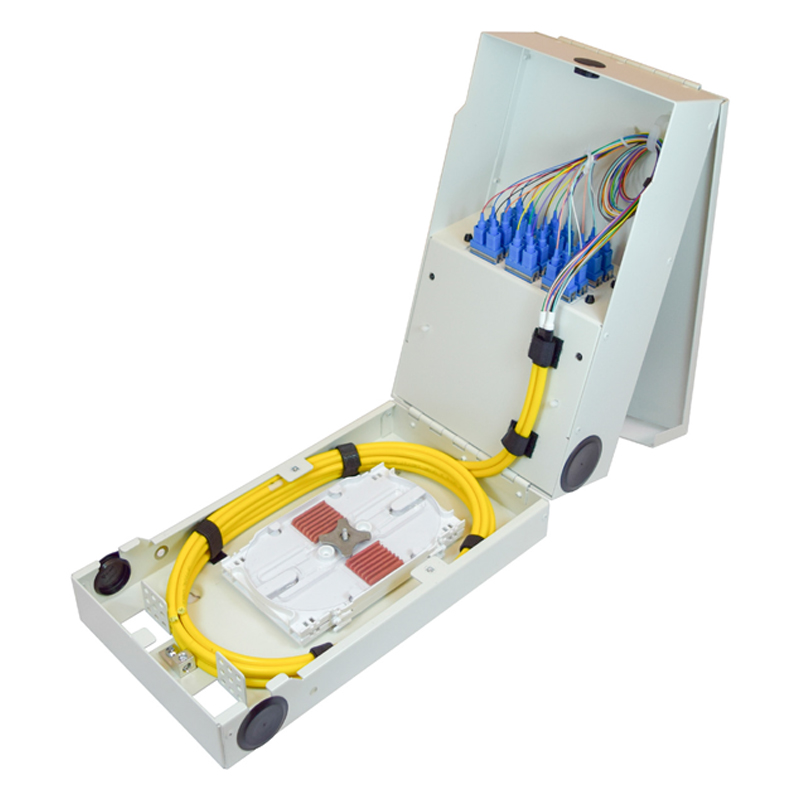

Tri-Panel 2X
Specifications
| Dimensions (Inches) | 7.0 x 12.0 x 4.1 (HxWxD) |
| Adapter Plate Capacity | 2 |
| Fiber Capacity | 24 SC or 48 LC (Ribbon) |
| Cable Entry Openings | Patch Side: (2) 1.5” |
| Splice Side: (2) 1.18” | |
| Material | 1.5mm Thick Aluminum |
| Material Finish | White or Black Powder Coat |
| Weight (Empty) (lbs) | 3.0 |

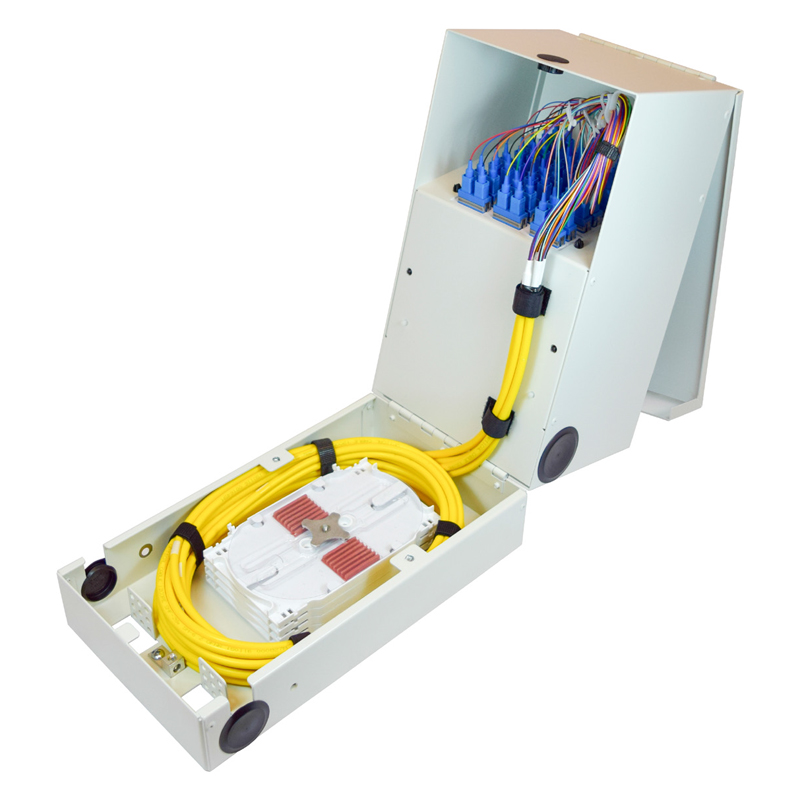

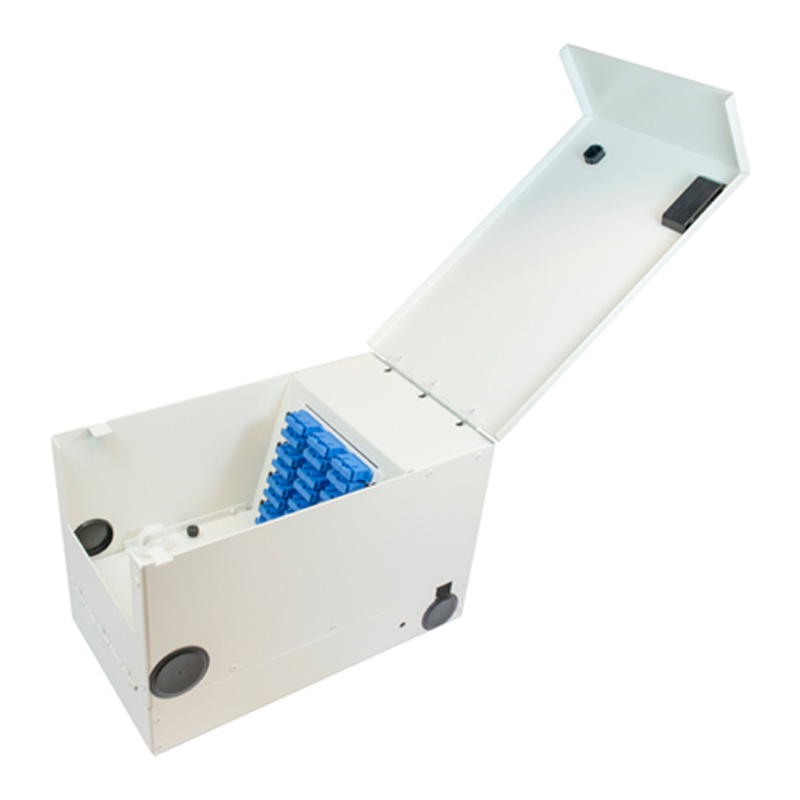

Tri-Panel 4X
Specifications
| Dimensions (Inches) | 7.0 x 12.0 x 7.6 (HxWxD) |
| Adapter Plate Capacity | 4 |
| Fiber Capacity | 48 SC or 96 LC (Ribbon) |
| Cable Entry Openings | Patch Side: (2) 1.5” |
| Splice Side: (2) 1.18” | |
| Material | 1.5mm Thick Aluminum |
| Material Finish | White or Black Powder Coat |
| Weight (Empty) (lbs) | 4.0 |

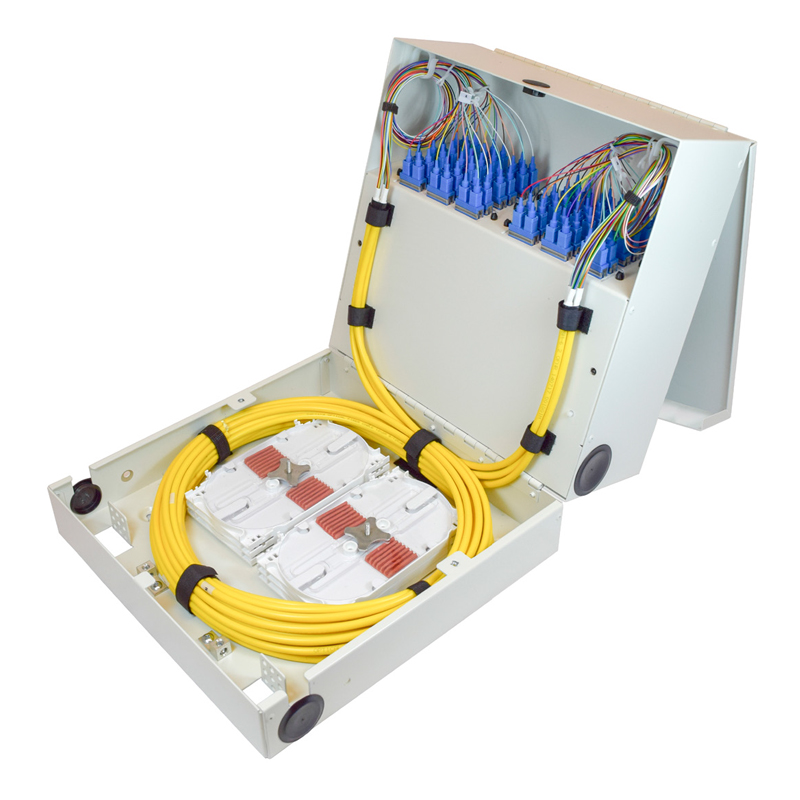

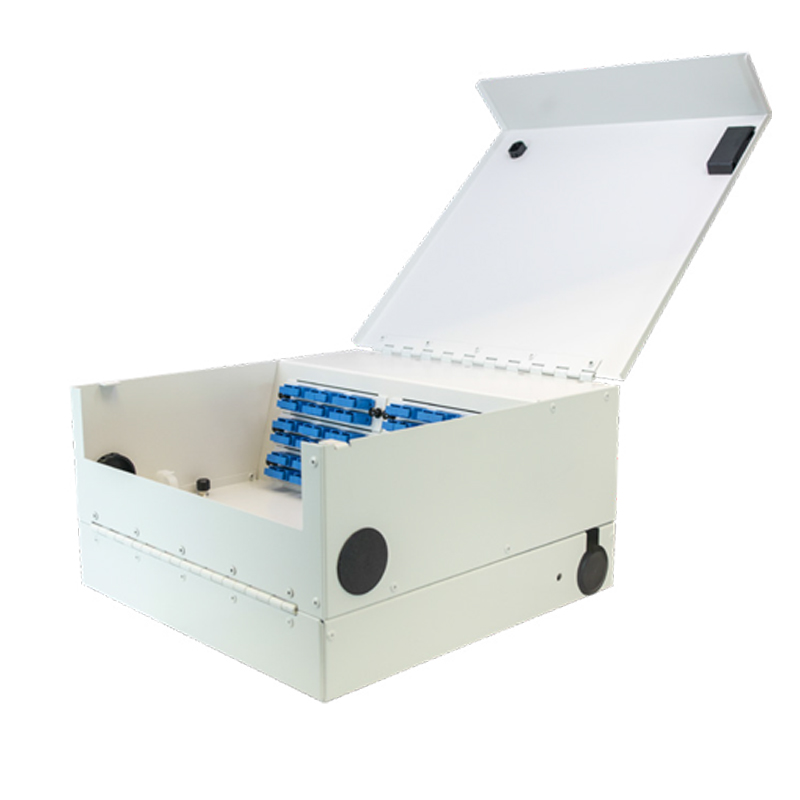

Tri-Panel 6X
Specifications
| Dimensions (Inches) | 12.0 x 12.0 x 6.5 (HxWxD) |
| Adapter Plate Capacity | 6 |
| Fiber Capacity | 72 SC or 144 LC (Ribbon) |
| Cable Entry Openings | Patch Side: (2) 1.5” |
| Splice Side: (2) 1.18” | |
| Material | 1.5mm Thick Aluminum |
| Material Finish | White or Black Powder Coat |
| Weight (Empty) (lbs) | 4.5 |

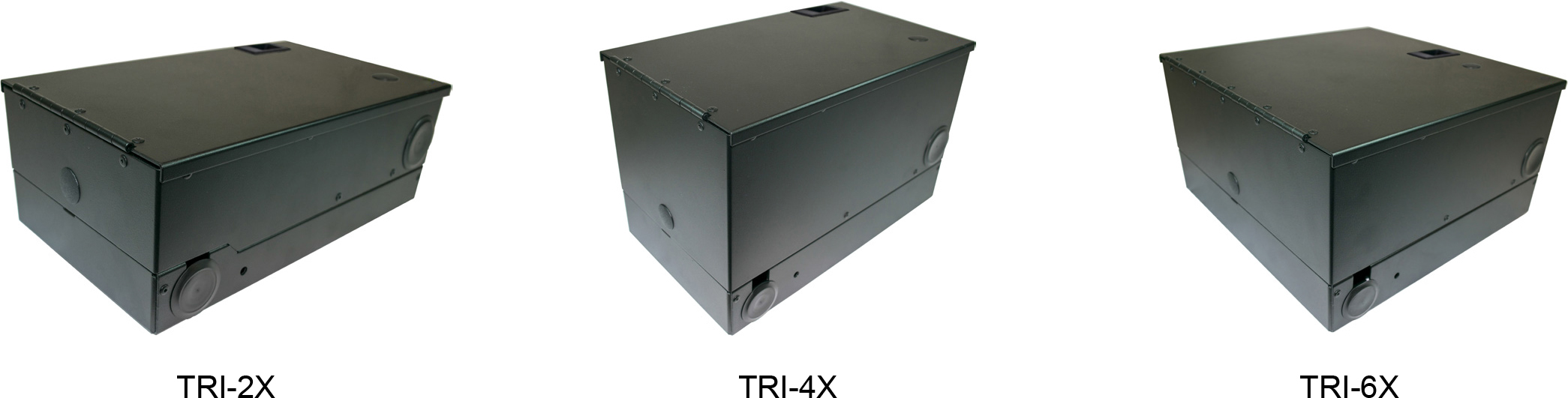

Black Color Available

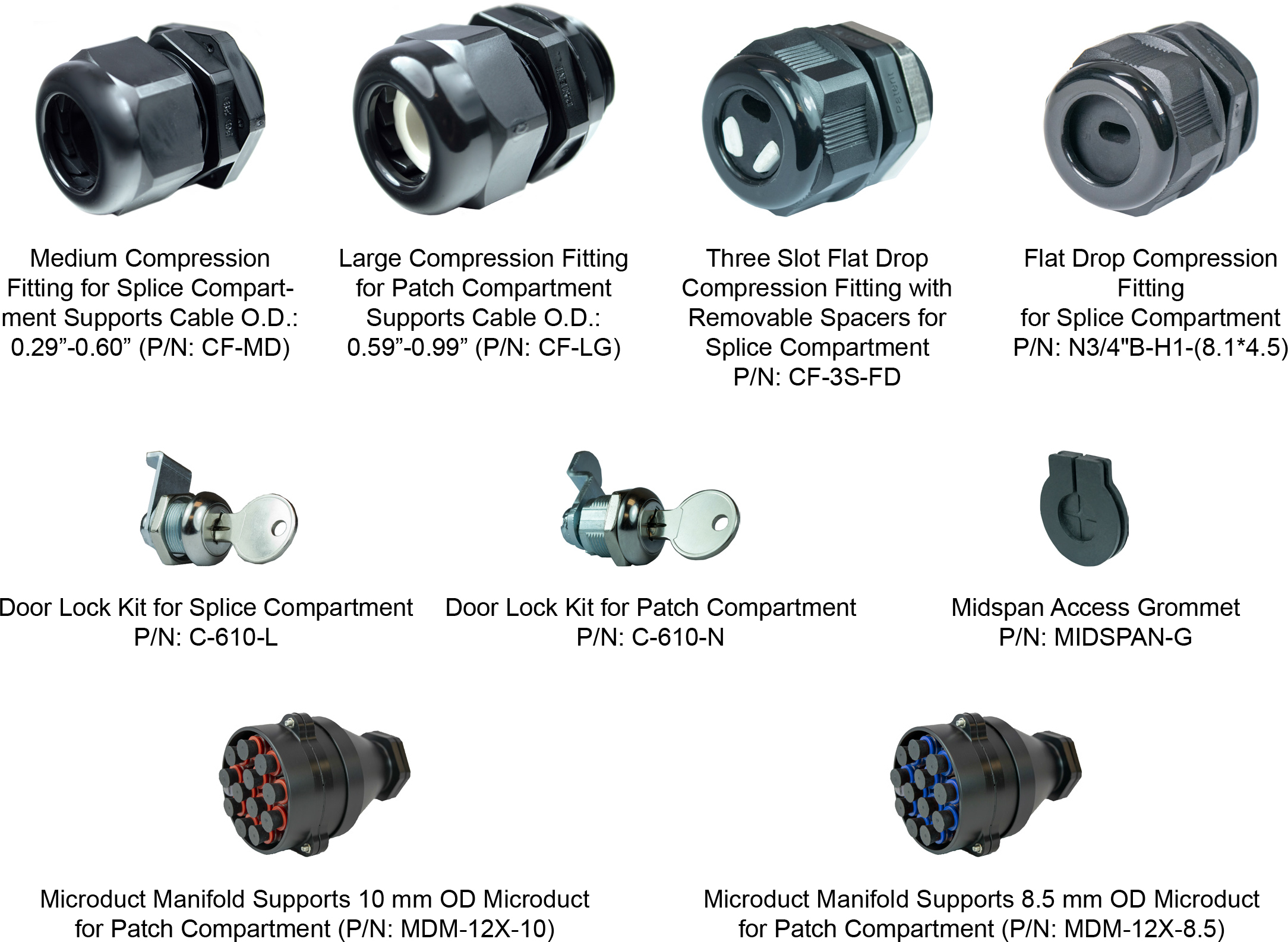

Accessories
