Splice Entry Closure (OSEC) Series

Overview

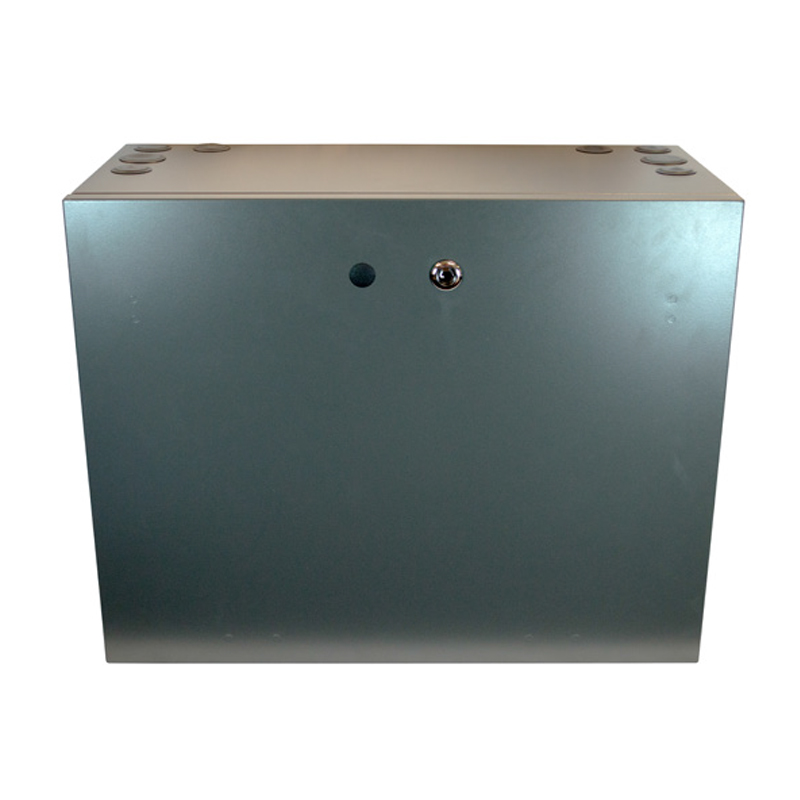

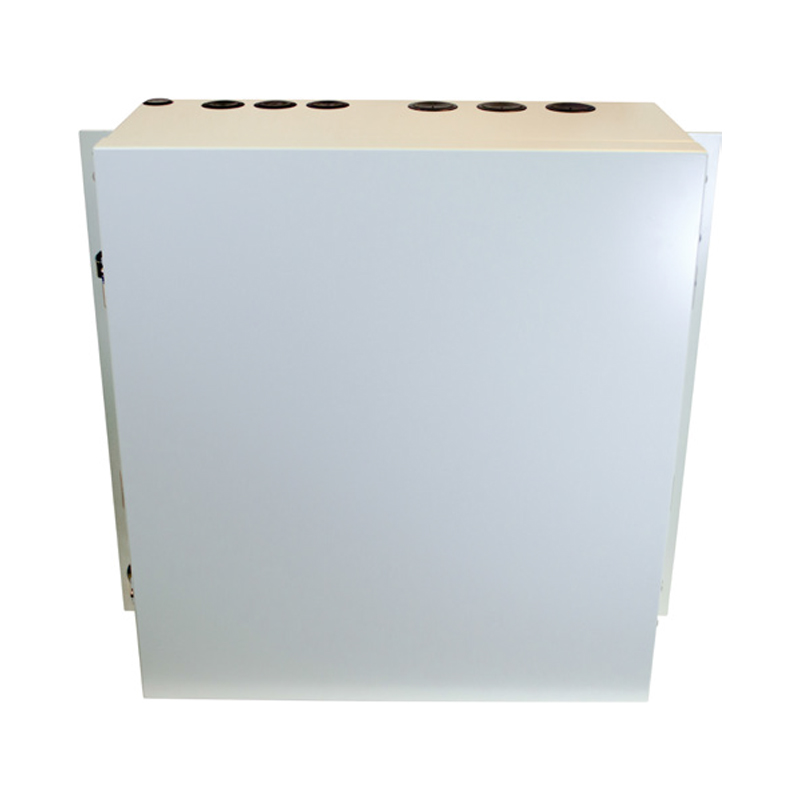

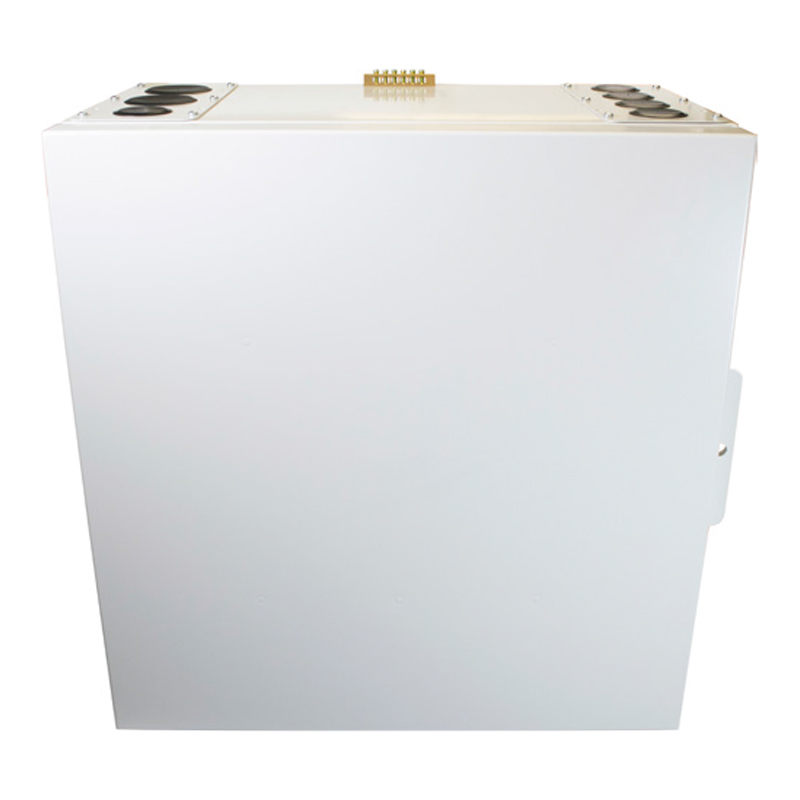

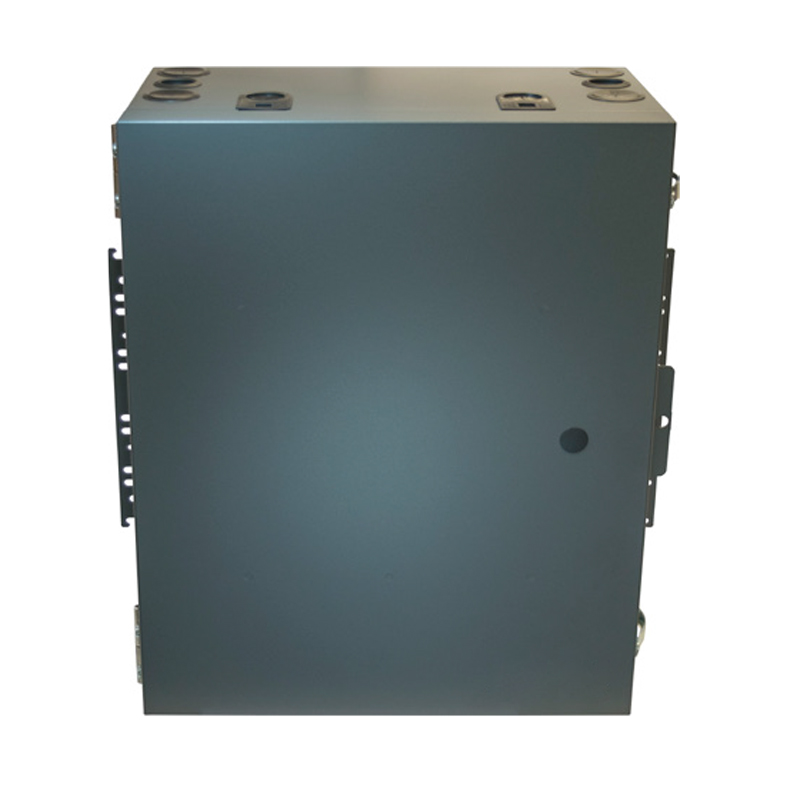

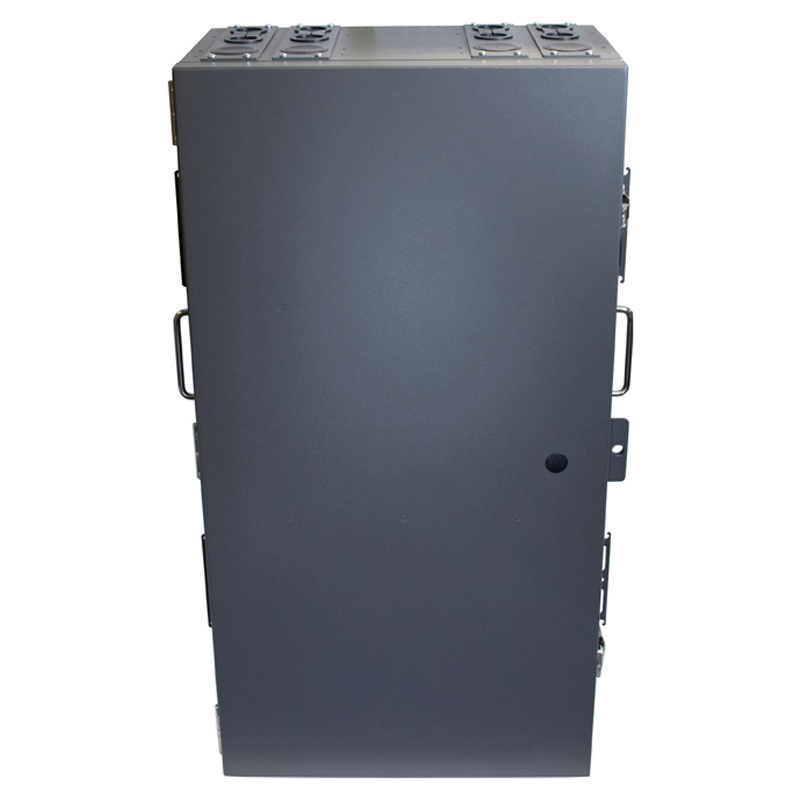

Splice Entry Closure (OSEC) Series Wallmount Enclosures are splice only cabinets that come in a variety of sizes and configurations.

OSECs can be installed in a building entrance facility or an outside plant vault as a cable pull box and/or a cable splice enclosure.

These panels allow the user to sort and organize the splicing of pre-terminated (stubbed) riser cables from fiber patch panels to outside plant trunk cables at a building entrance.

OSEC cabinets are dust proof, water resistant, and constructed of aluminum, with a durable powder coated finish.

The full size gasketed door offers maximum access to the enclosure interior during installation and service.

Features

• Cable entry holes feature protective removable caps

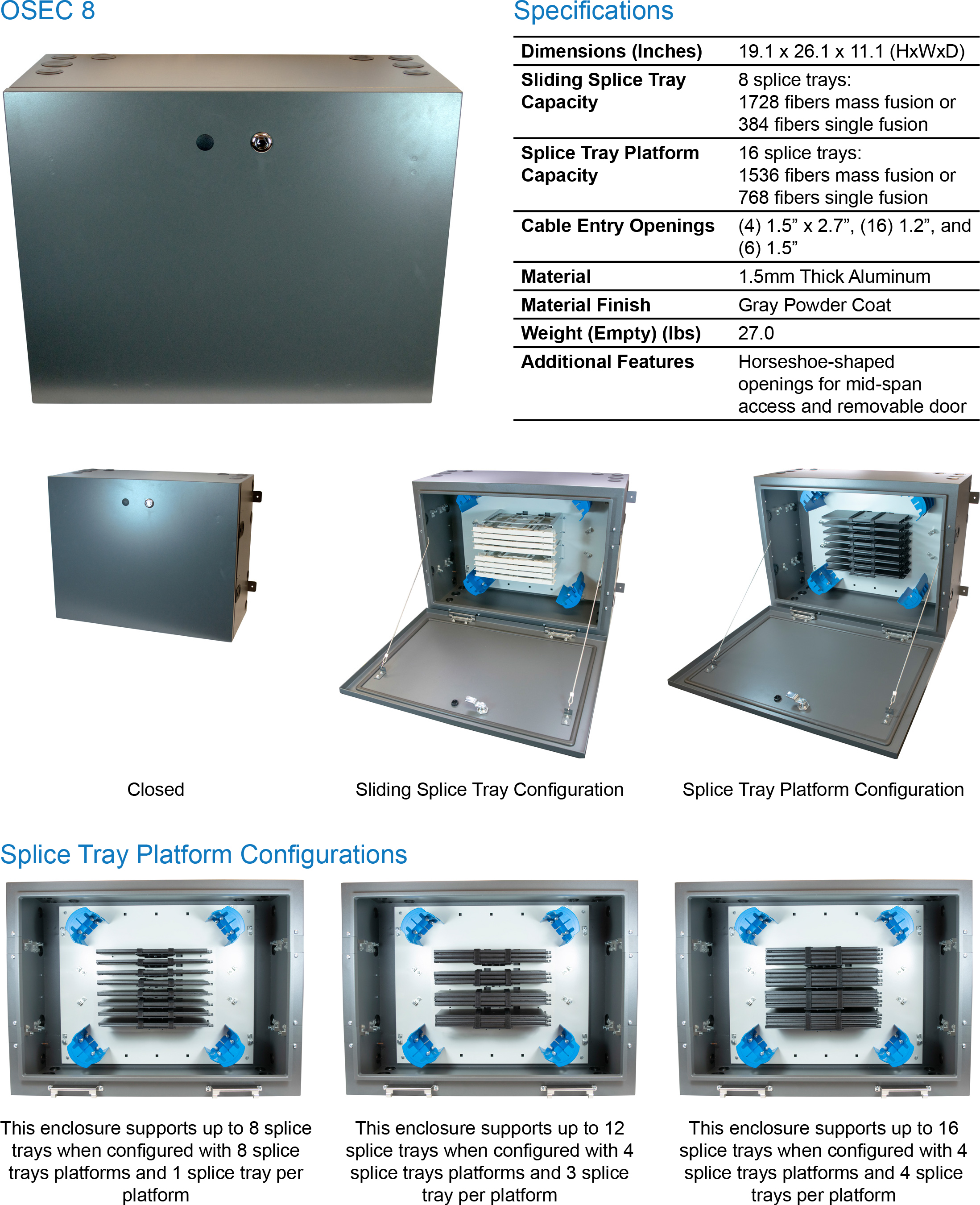

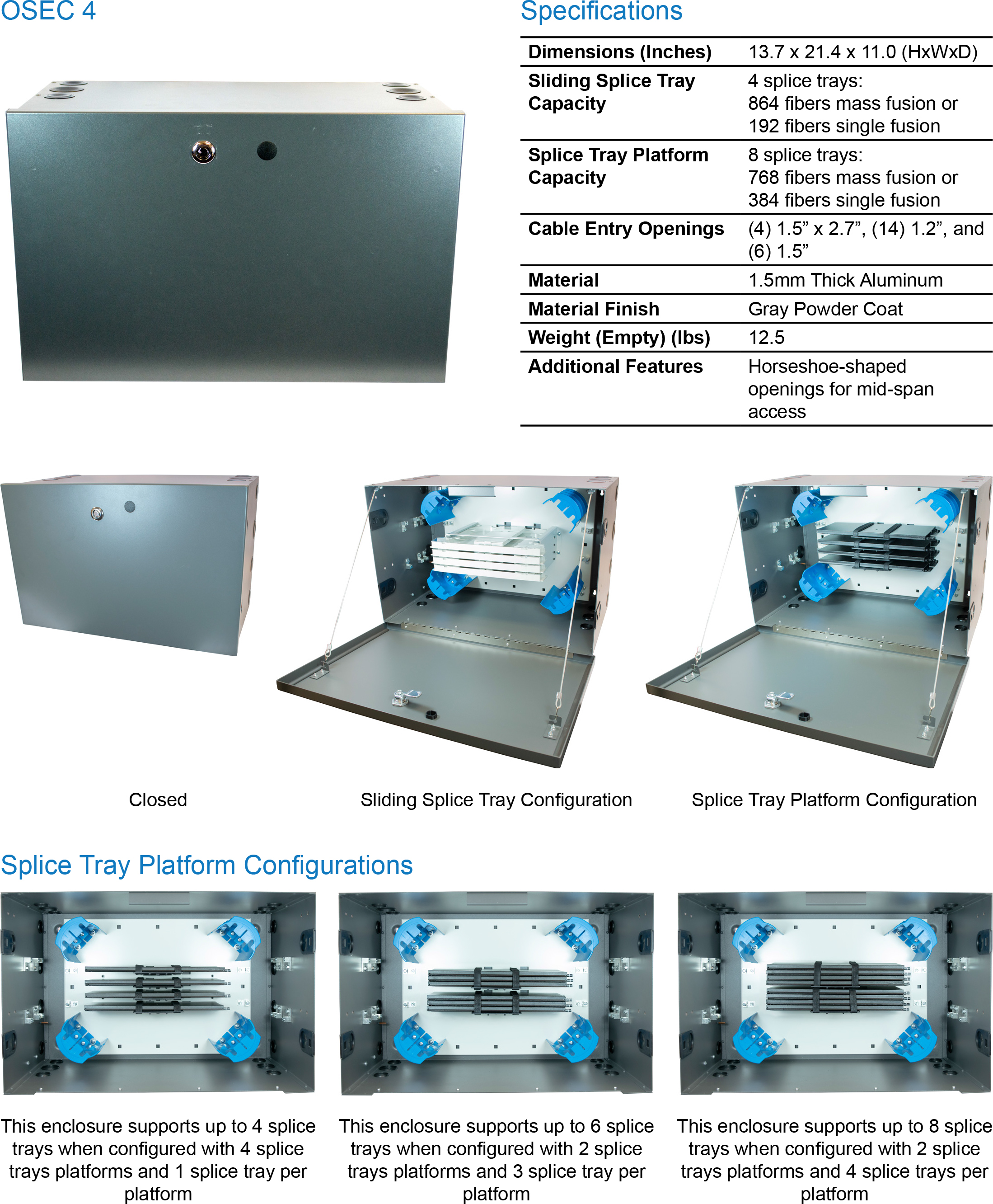

• OSEC 4 and OSEC 8 drop-down door serves as a work table

• Organize and manage optical fiber splices between outside plant and indoor cable routed to crossconnect equipment.

• Wall or unistrut mountable

• Corrosion resistant aluminum construction, heavyduty door with gasket, and robust hinges and latches protect fiber

• Six position grounding block, strain relief lugs, and fiber management radius guides

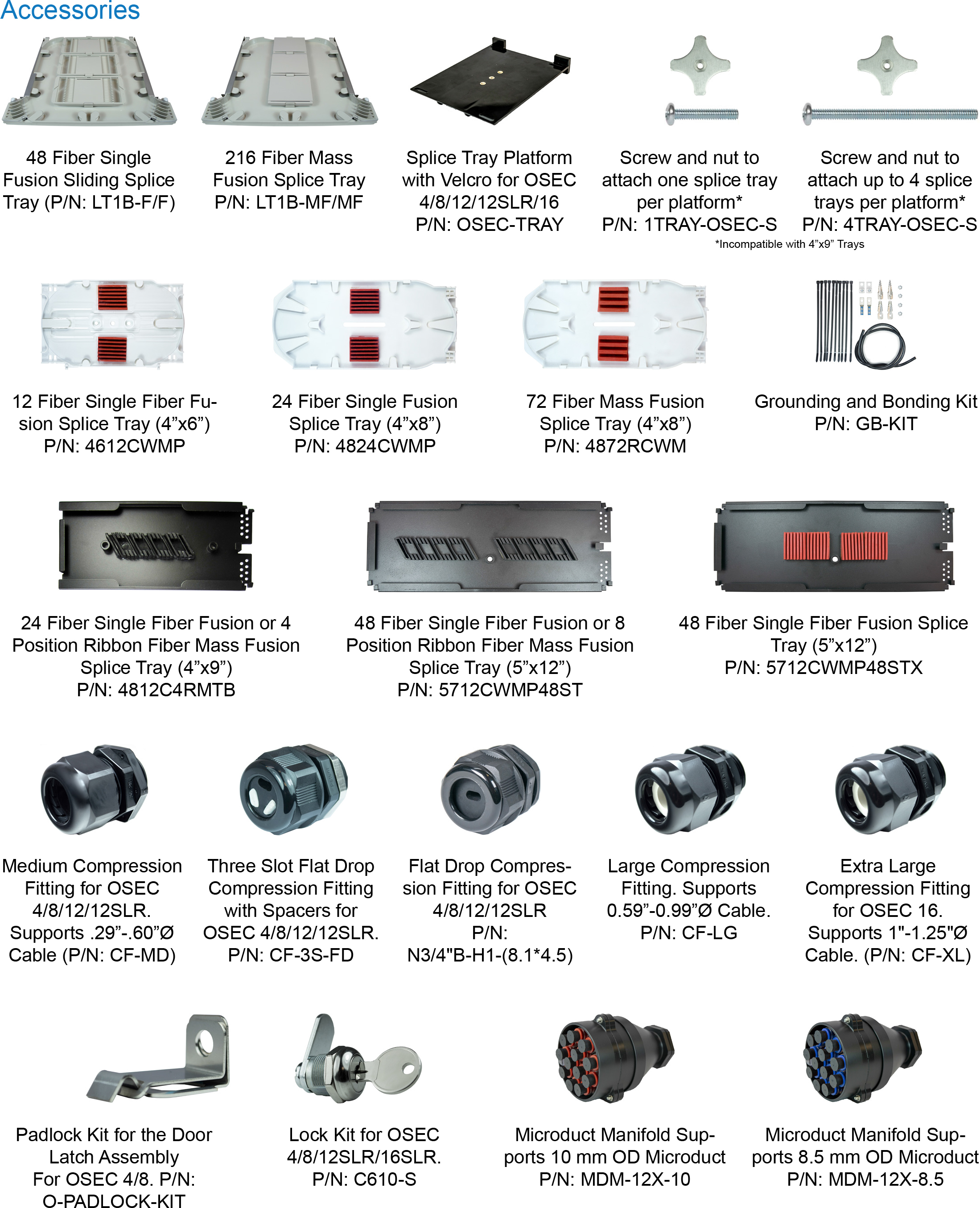

• Support for splice tray platforms or sliding splice trays with individual access to each splice tray

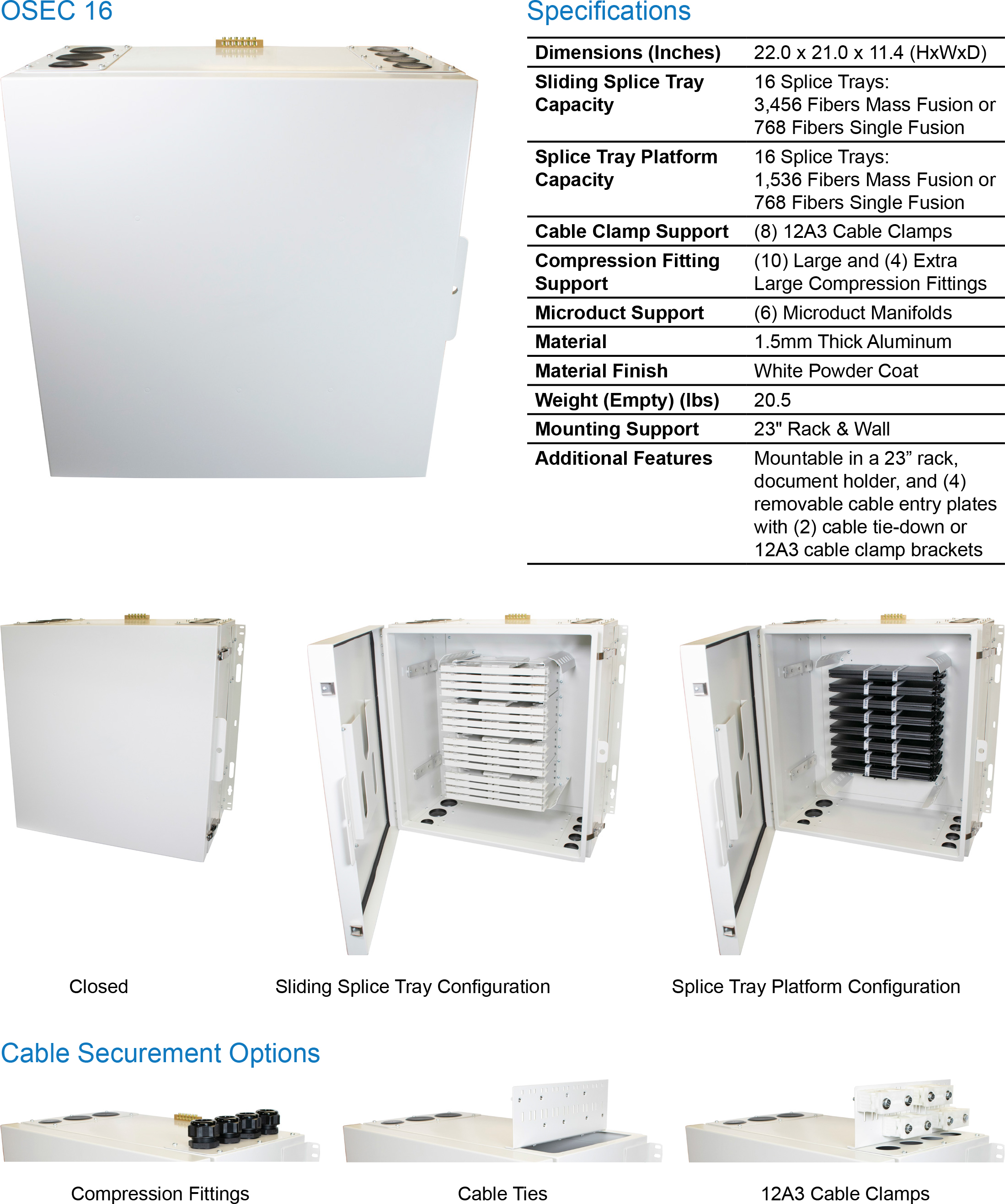

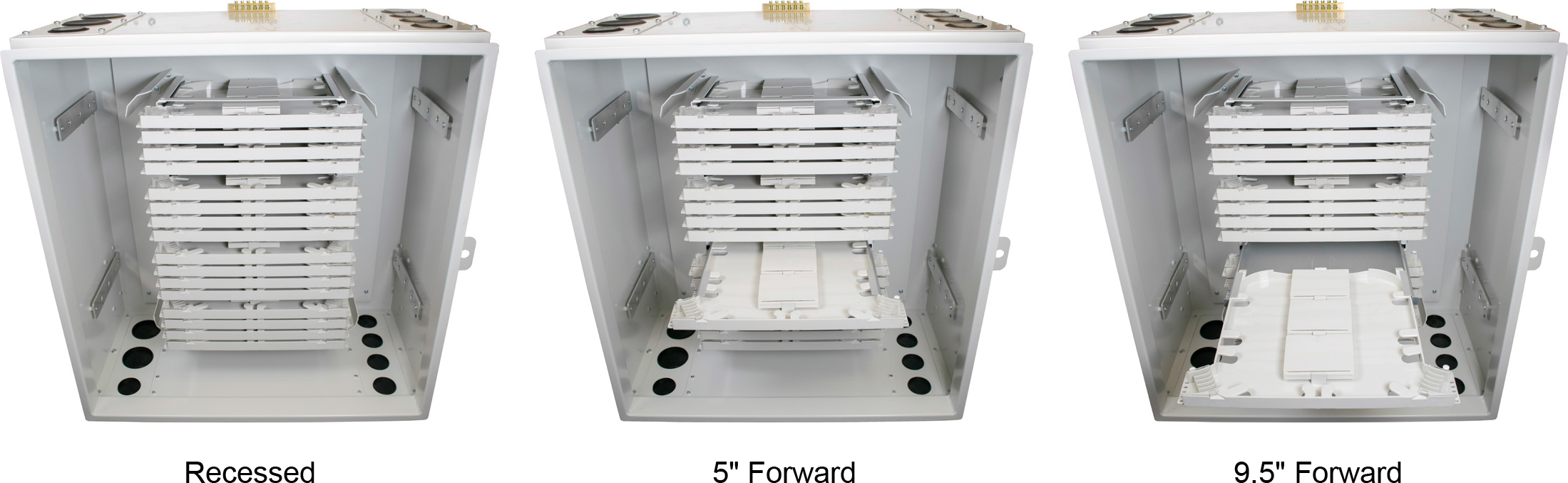

Sliding and Removable Splice Tray System

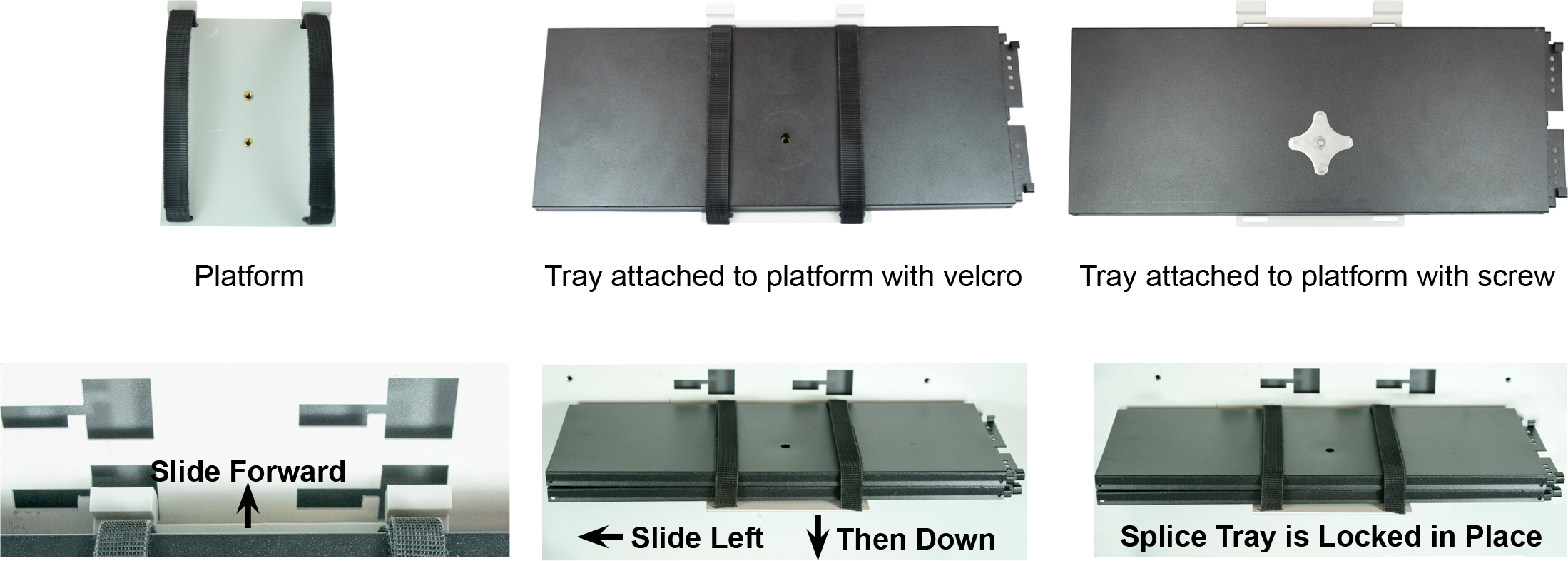

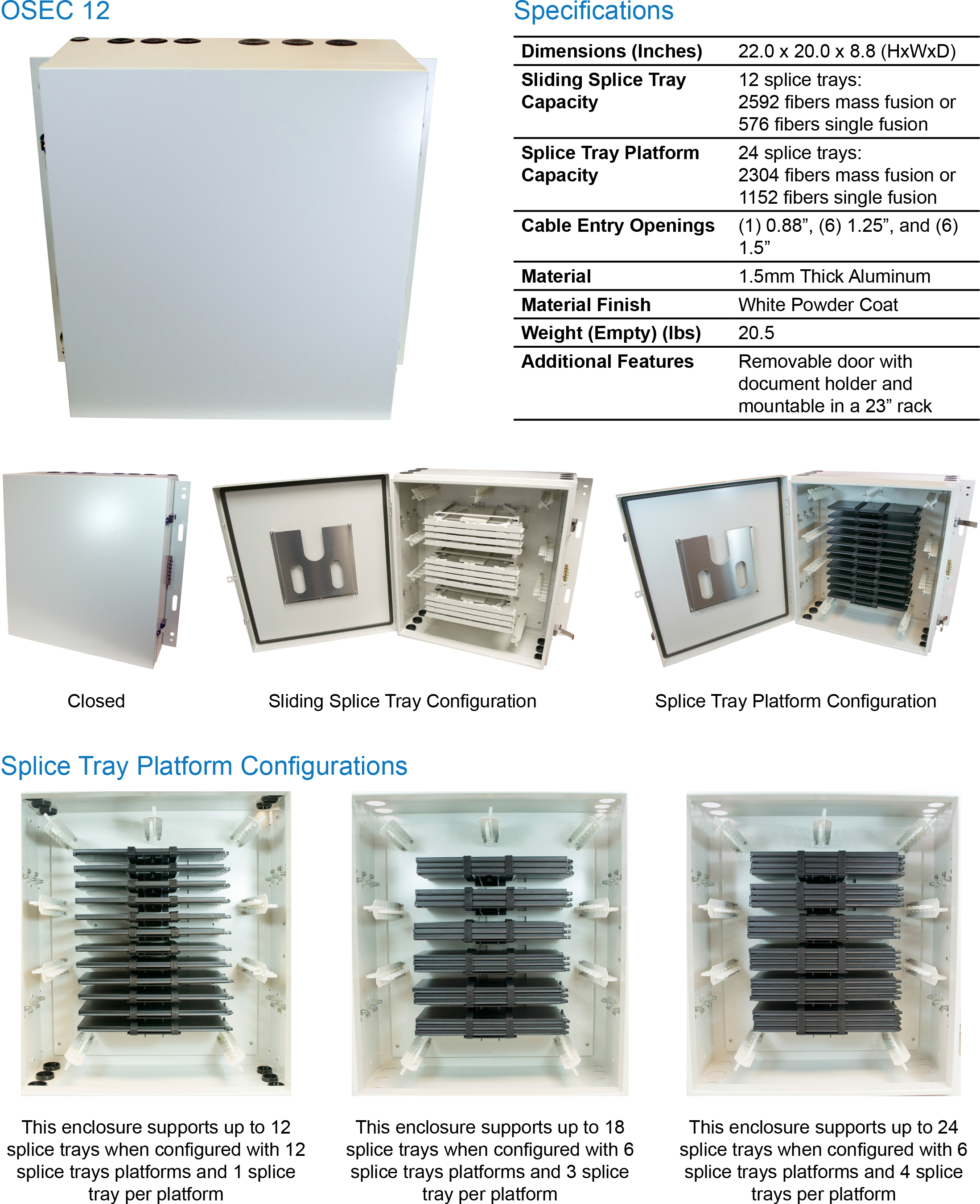

Alternate Splice Tray Platform Mounting System

Standard format splice trays can be attached to a platform using velcro and/or a machine screw and retainer nut.

To attach a platform, simply align it with the enclosure backplate and slide it into position.
