CNMulti-Panel (MPX) Series
Multi-Panel (MPX) Series Wallmount Enclosures feature layered patch and splice compartments for a reduced footprint and an intelligent layout for enhanced component accessiblity, cassette support
Multi-Panel (MPX) Series Wallmount Enclosures feature layered patch and splice compartments for a reduced footprint and an intelligent layout for enhanced component accessiblity, cassette support
Multi-Panel (MPX) Series Wallmount Enclosures feature layered patch and splice compartments for a reduced footprint and an intelligent layout for enhanced component accessiblity, cassette support, and cable
management. Support for cassettes with front and rear facing ports and access doors support easy inspection and cleaning. The cable management rings support large amounts of slack storage. Hinged removable trays and surrounding cable management rings support easy splicing and slack storage.
Features
• A removable shroud protects 900μm pigtail connectors from mishandling
• Thumbscrew and padlock hasp provide splice compartment security
• Support for two LGX cassettes with front and rear facing adapters
• The bulkheads are raised above the cable management rings for easy access

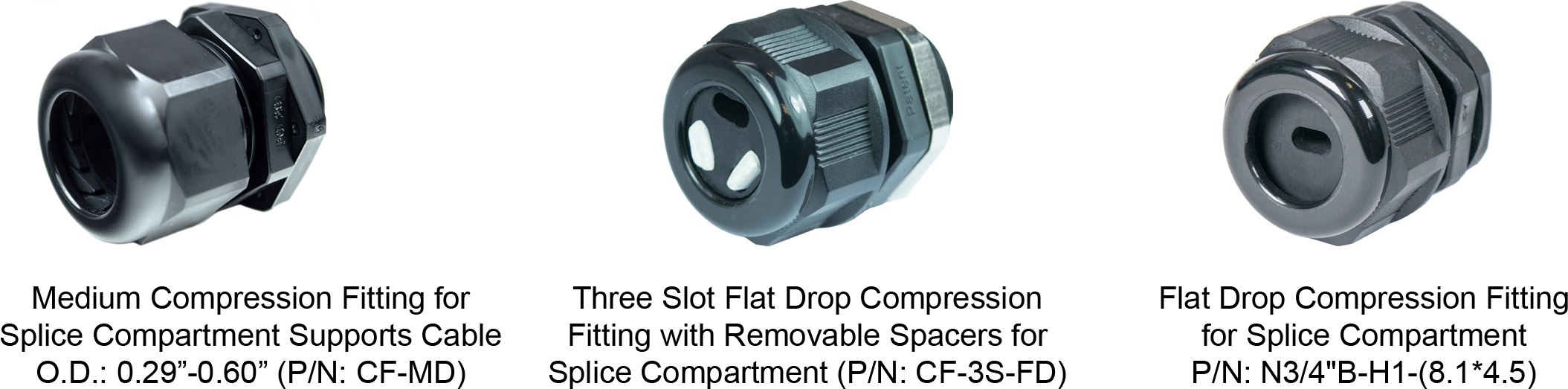

• Integrated cable clamps easily secure cables and grommets support midspan access ring cuts
• Patch compartment connector access doors support easy inspection and cleaning
• Patch compartment cable management rings support up to 10ft of slack for each drop cable

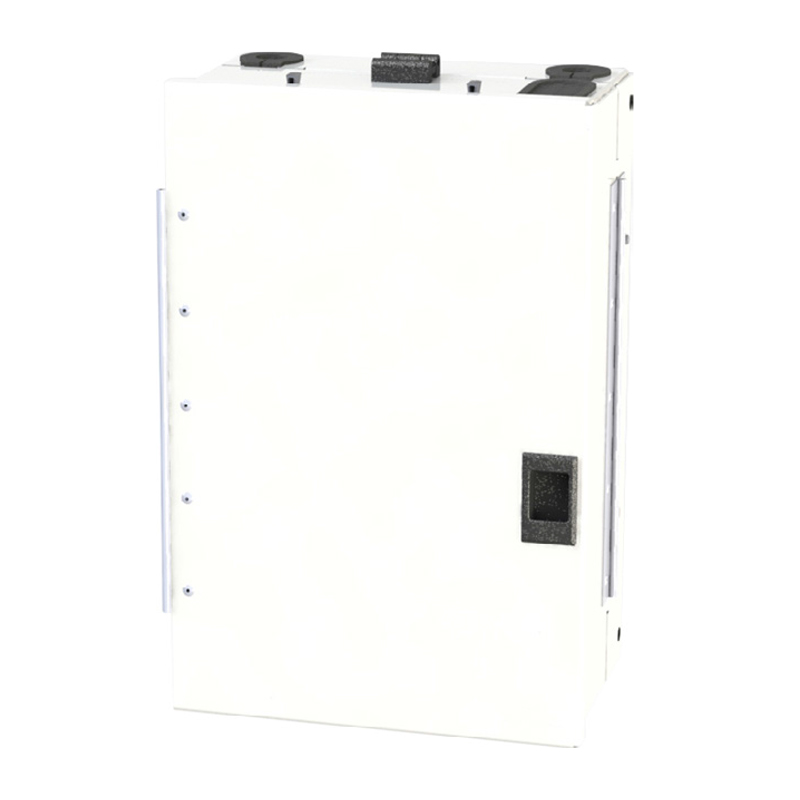

Views

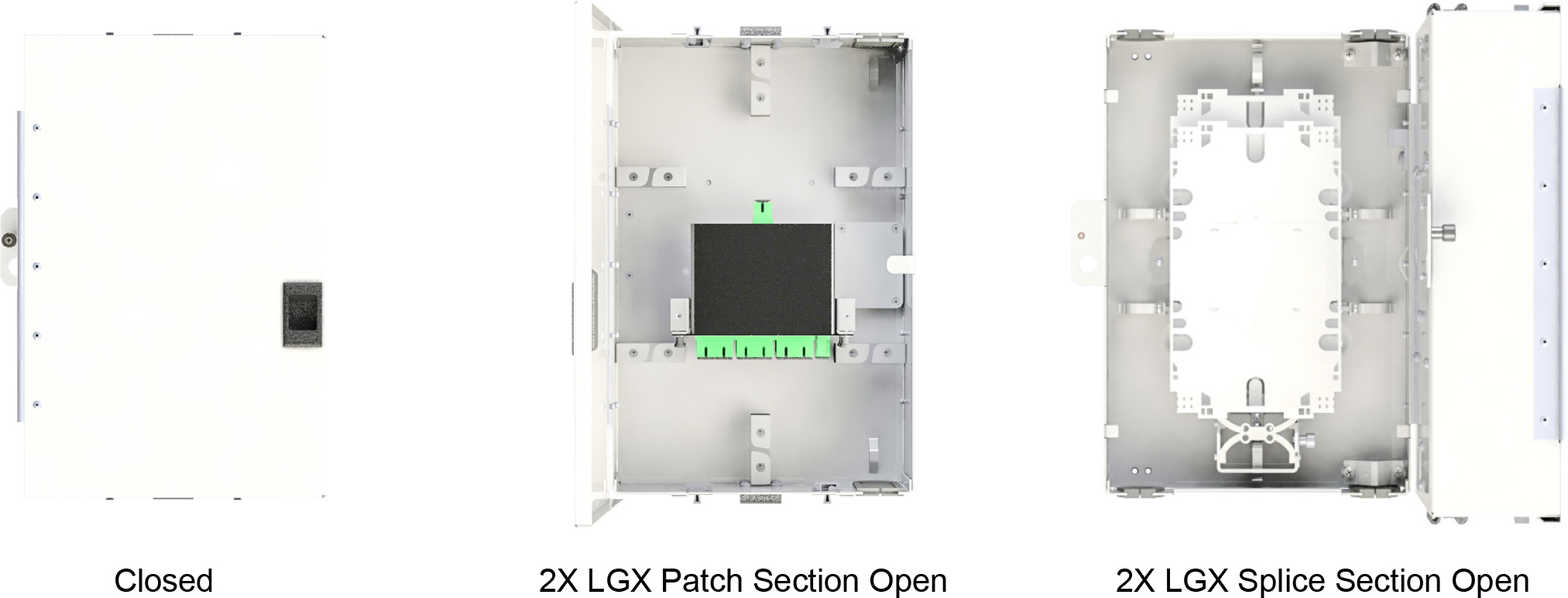

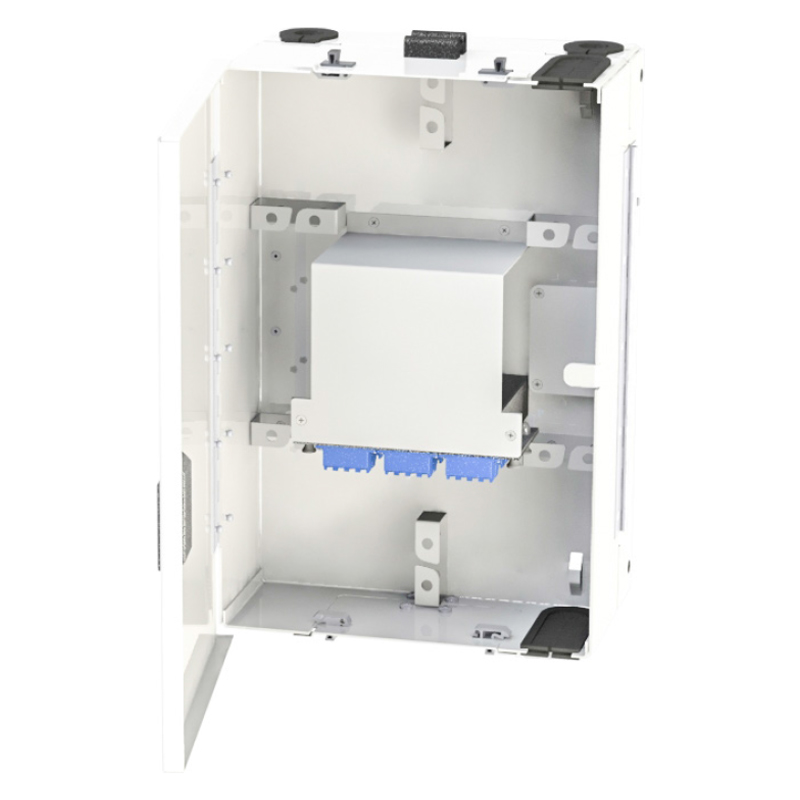

Multi-Panel 2X LGX
Specifications
| Dimensions (Inches) | 13.2 x 8.6 x 5.5 (HxWxD) |
| Adapter Plate Capacity | 2 |
| Splice Tray Capacity | 2 |
| Fiber Capacity | 24 SC or 48 LC (Ribbon) |
| Cable Entry Openings | Patch Side: (2) 1”x2” |
| Splice Side: (4) 1.1” | |
| Material | 1.5mm Thick Aluminum |
| Material Finish | White Powder Coat |
| Weight (Empty) (lbs) | 5.0 |

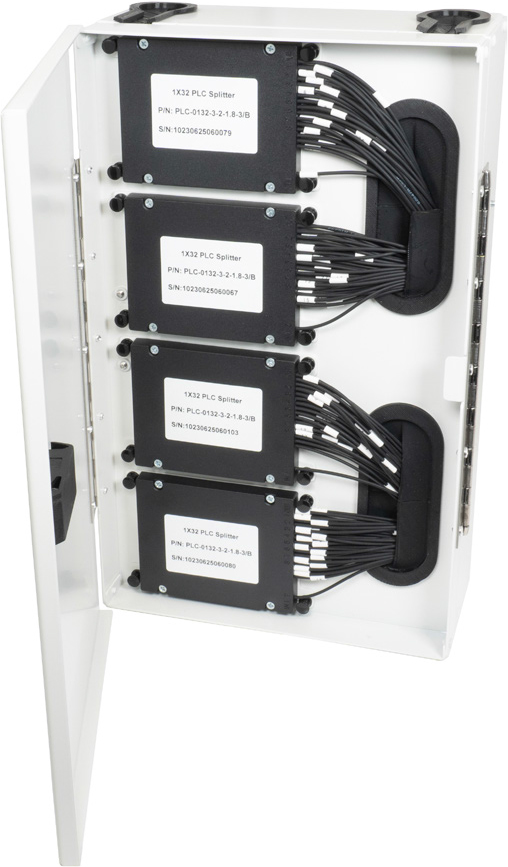

Multi-Panel 4X Module
Specifications
| Dimensions (Inches) | 14.2 x 8.6 x 4.2 (HxWxD) |
| Module Capacity | 4 |
| Splice Tray Capacity | 4 |
Supported WDM Configurations | 4CH, 8CH, or 10CH |
Supported Splitter Configurations | 1x2, 1x4, 1x8, 1x16, or 1x32 |
| Cable Entry Openings | Splice Side: (4) 1.1” |
| Material | 1.5mm Thick Aluminum |
| Material Finish | White Powder Coat |
| Weight (Empty) (lbs) | 5.0 |
| Notes | LGX patch compartment is replaced with a module compartment |
