WM Deployable Patch Panel (DPP)

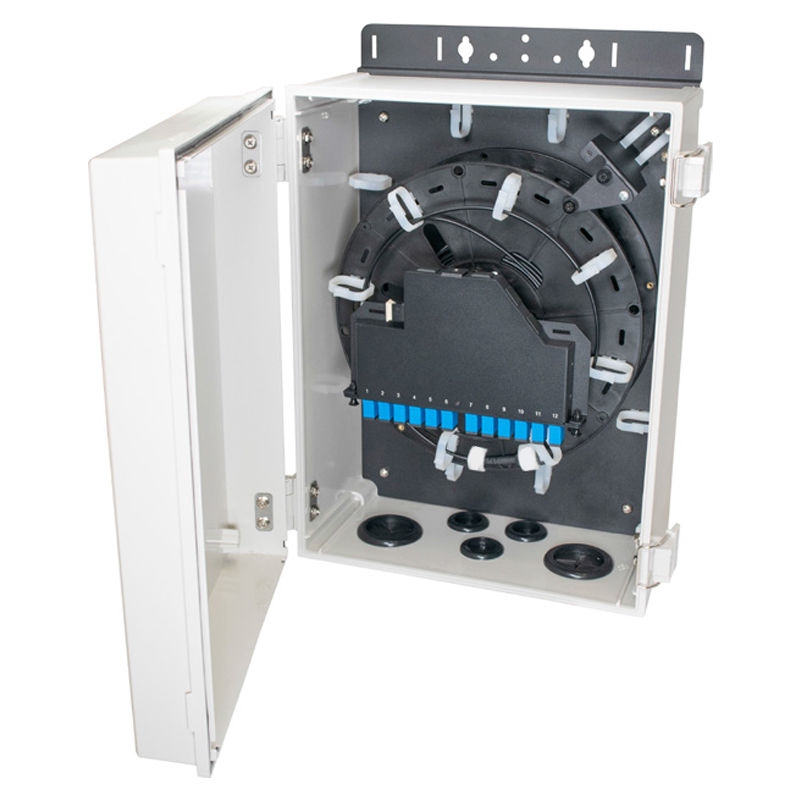

The Wallmount (WM) Deployable Patch Panel (DPP) holds a preterminated cable assembly on an internal reel.

The cable is pulled off of the internal spinning reel and the panel holds the remaining slack.

This allows for one panel configuration to serve multiple deployments without the need for slack storage.

A breakout cassette comes preinstalled on single reel configurations and does not interfere with cable deployment.

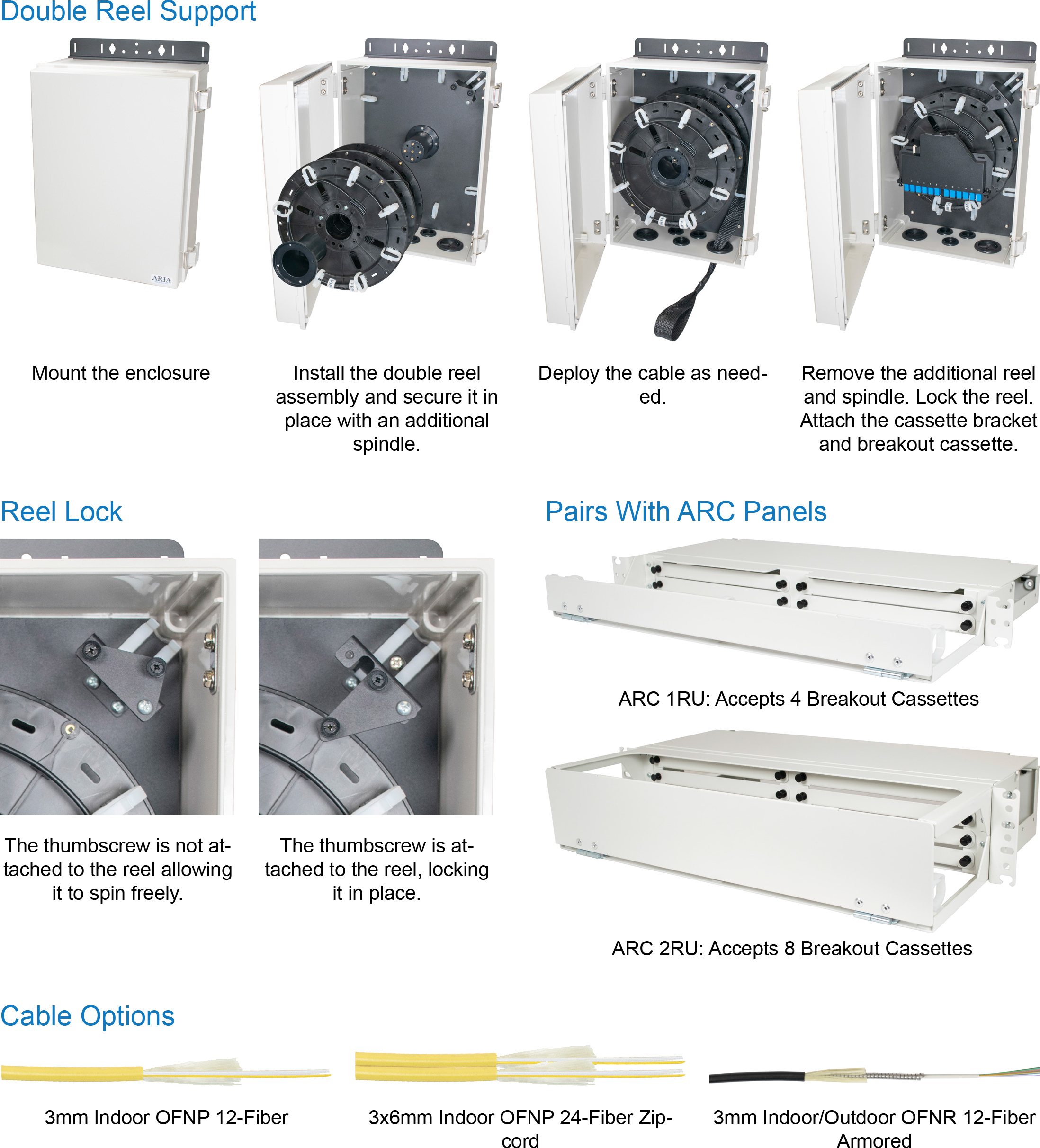

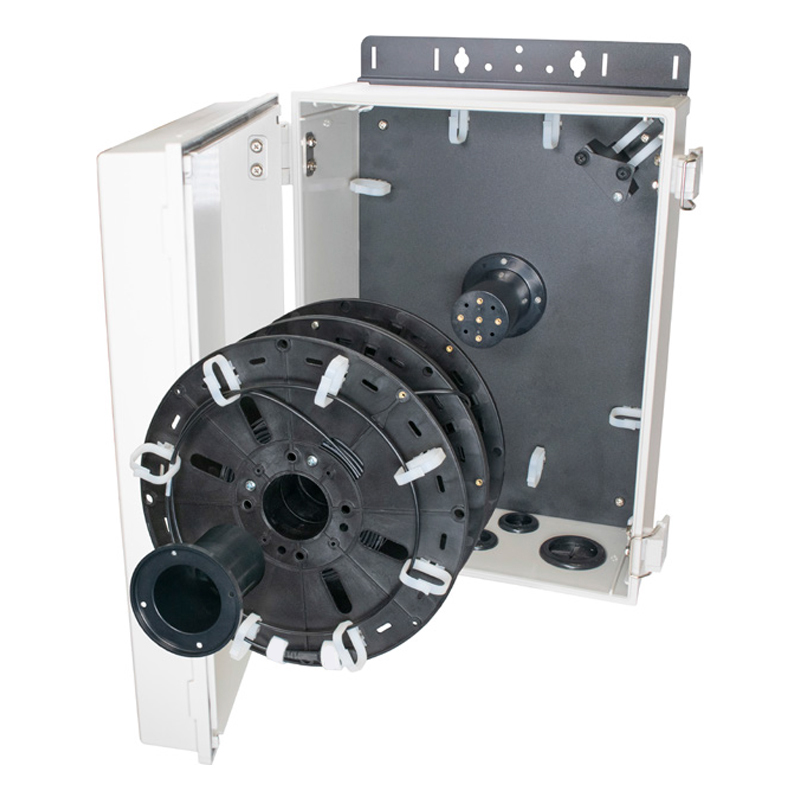

Double reel or single reel configurations are available depending on the length needed.

The pulled connector is protected with a pulling eye.

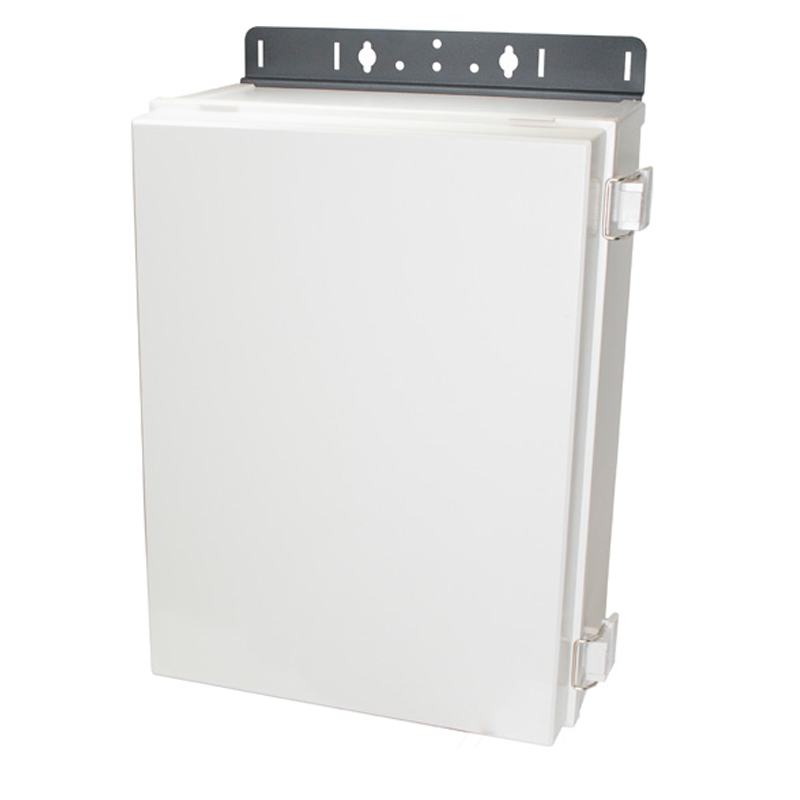

Keyholes on the mounting brackets ease installation.

Features

• Internal spinning reel stores cable slack and allows one product to serve different deployment scenarios

• Supports up to 1,000 feet of 12 fiber cable internally with capacity for additional cable on an external reel

• A thumbscrew locks the reel rotation once the desired length of cable has been deployed

• 12-fiber SC, 12-Fiber LC, or 24-fiber LC configurations available

• Port labeling beside bulkheads for quick identification

• Management rings organize patch cord slack

Specifications

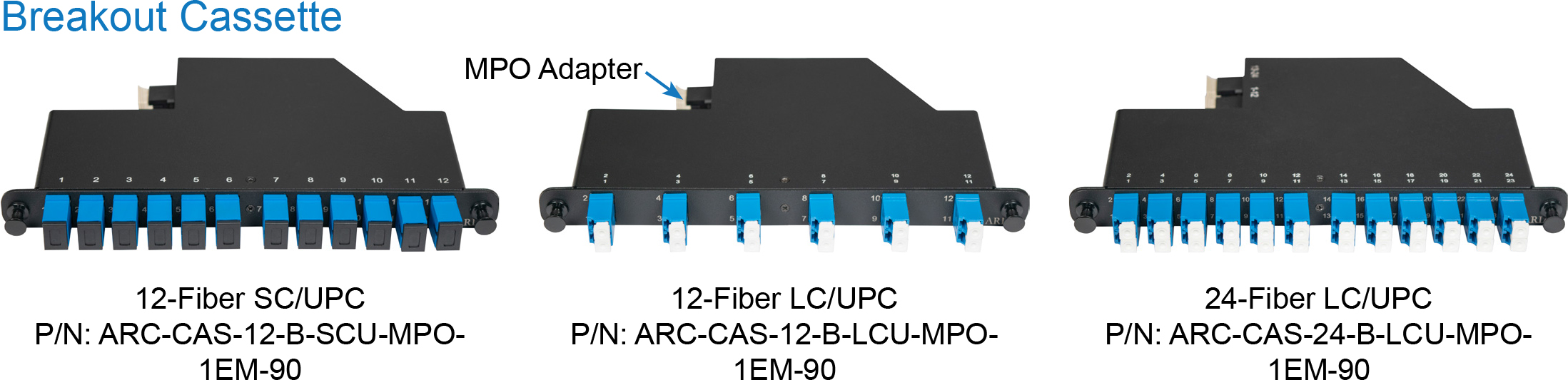

Once the cable is deployed, the inside leg or panel end MPO connector is mated to the MPO adapter on the back of

the breakout cassette. The ports feature generous spacing for easy access and are labeled for quick identification.
